1.The best option in temperature control for medium and small van .
2.Ul tra-thin parallel flow condenser , small size , light weight , efficient thermal dissipation

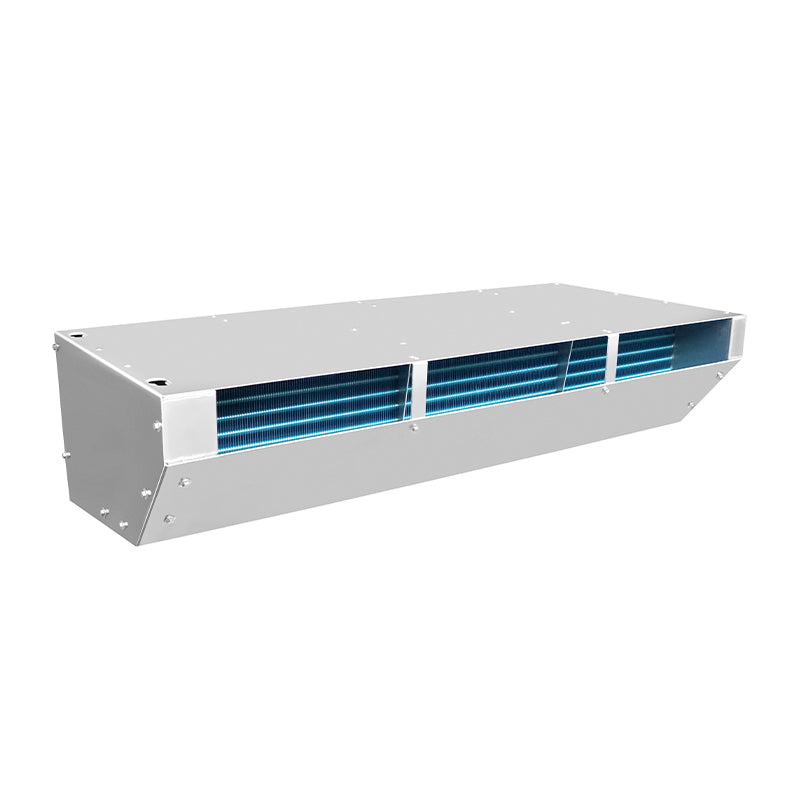

3. Ul tra-thin evaporator , provides more space for loading .
4.LED contorller with digital display enables you to control easily in the driving room .
5.Large air volume is designed to cool down quickly and provide more protection for cargoes .
6.High matching system , rapid cooling , accurate temperature control , fuel consumption saving .
7.Adapting to the harsh environment , it still can work well at 49 degrees .
8.All parts of the units are easy to install and maintain .
9.Automatic and manual defrosting , select easily .
10.Independet power backup options ( single-phase or three phase ) to provide customers with more choices .
11.At extremely low temperatures , the heating function keeps the cargoes in an ideal state
Specification
|
Model
|
YD-1080
|
Range of temperature
|
℃
|
-18~10
|
Refrigerant capability
|
internal temperatures 0℃
|
W(Kcal/hr)
|
8850
|
Refrigerant capability
|
internal temperatures-18℃
|
W(Kcal/hr)
|
5630
|
Evaporator
|
Dimension
|
mm
|
L1620×W650×H350
|
Air volume
|
m³/h
|
2880
|
Weight
|
Kg
|
55
|
Condenser
|
Dimension
|
mm
|
L1985×W440×H347
|
Weight
|
Kg
|
69
|
Compressor
|
Model
|
JS38/Danfoss
|
Refrigerant
|
R404A
|
Voltage
|
24 V
|
Container
|
≤58m³
|
